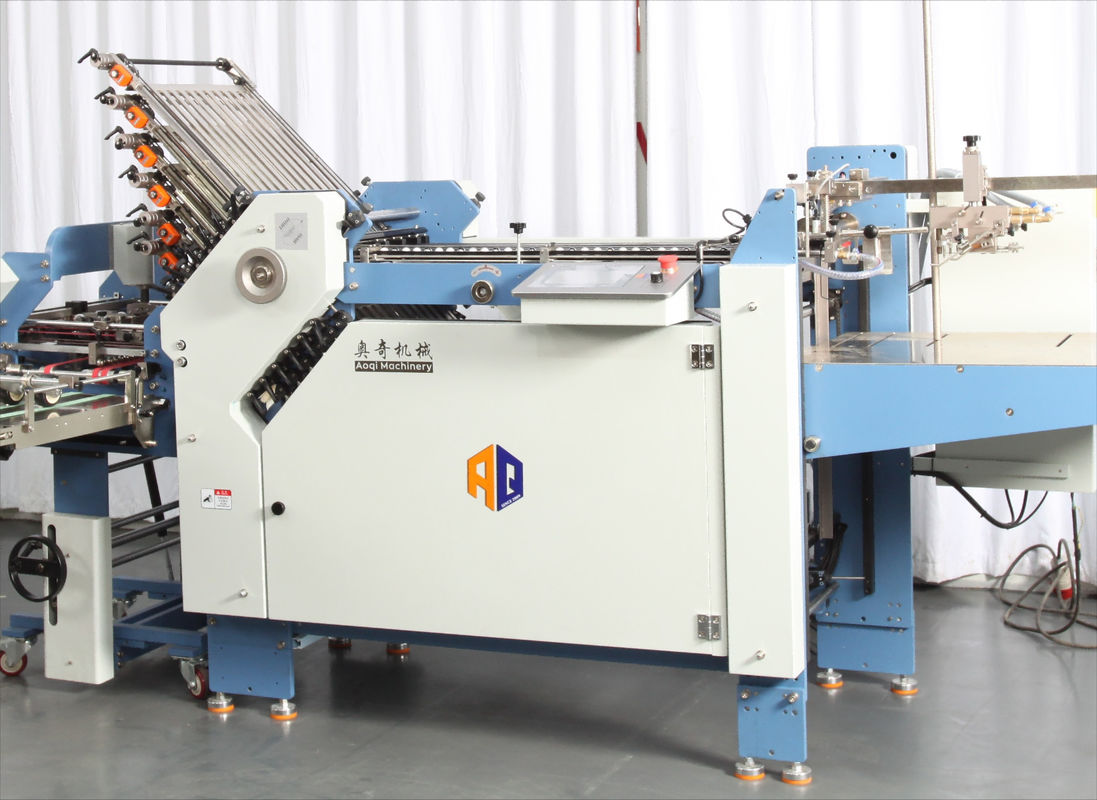

480mm Cross Fold Paper Folding Machine Width 12 Buckle Plates And Cross Fold
480T-12K+1D Cross Fold Paper Folding Machine can be used for small format paper with different thickness . It can acheive different folding type like half fold , Z-fold, double parallel-fold and 1 cross fold for the final fold .
Parameters
| Max paper feed size |
480*1000mm |
| Min paper feed size |
50*105mm |
| Paper thickness range |
30-250g
|
| Max speed of folding roller |
180m/min |
| Max frequency of folding knife |
460times/min |
| Input power |
380V |
| Total power |
3.3KW |
| Machine weight |
771.5KG |
| Machine dimensions |
2900*1600*1480mm |
Feature
1.Electrically Controlled Knife Of Photoelectric Integration Realizes High Speed, Superior Reliability And Minor Paper Wastage
2.Designing The Angle Of The Transitional , That Efficacious In Preventing The Paper Wrinkled
3.Sensitive Automatic Control Device Of Double Sheet And Jammed Sheet.man-machine Interface Facilitates Parameter Input
4.Electrical System Controlled By Plc.Smoothly Controlled By Vvve With Overload Protecting Function
5.Nonskid,wear Proof ,anti-rust Steel-pu Folding Roller With Screw Stripe,so That Thecontact Area Is Increased By 75%in Contacting With The Paper
