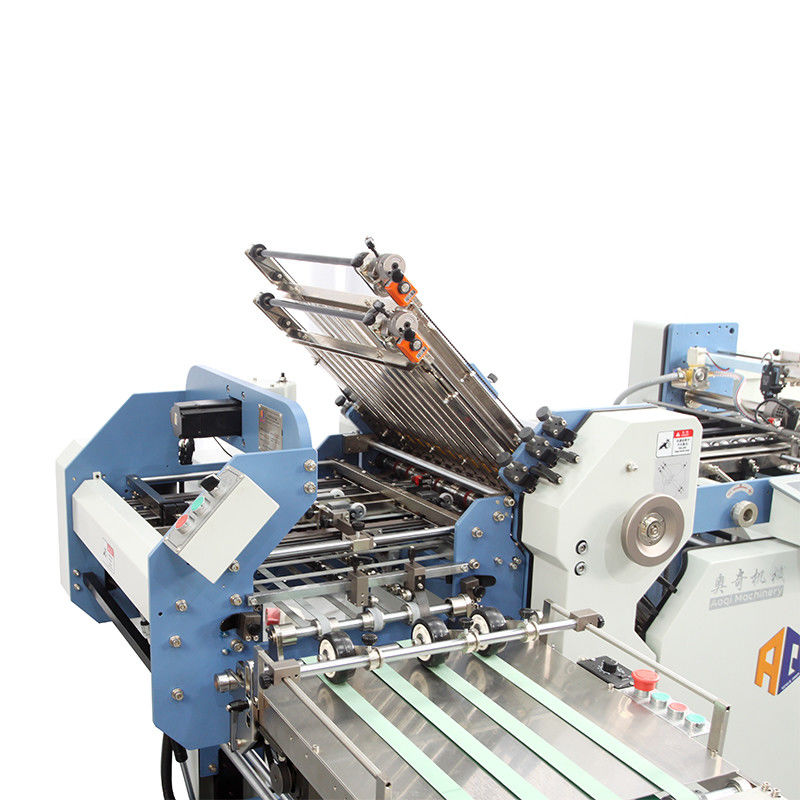

AOQI 360mm Width Gear Driving High Speed And Easy To Use A4 Paper Folding Machine
360T-4K+1D Cross Fold Paper Folding Machine can be used for small format paper with different thickness . It can acheive different folding type like half fold , Z-fold, double parallel-fold and 1 cross fold for the final fold .
Product parameters
| Max paper feed size |
360*750mm |
| Min paper feed size |
50*105mm |
| Paper thickness range |
30-250g |
| Max speed |
180m/min |
| Input power |
380V |
| Total power |
3.3KW |
| Machine net weight |
593KG |
| Machine dimensions |
2470*1550*1400mm |
Feature
1. Adopt Germany Imported Electric Appliances Of Schneider
2. Electrically Controlled Knife Of Photoelectric Integration Realizes High Speed, Superior Reliability And Minor Paper Wastage
3. Nonskid,wear Proof ,anti-rust Steel-pu Folding Roller With Screw Stripe,so That Thecontact Area Is Increased By 75%in Contacting With The Paper
4. Electrical System Controlled By Plc.Smoothly Controlled By Vvve With Overload Protecting Function
5. Designing The Angle Of The Transitional , That Efficacious In Preventing The Paper Wrinkled
