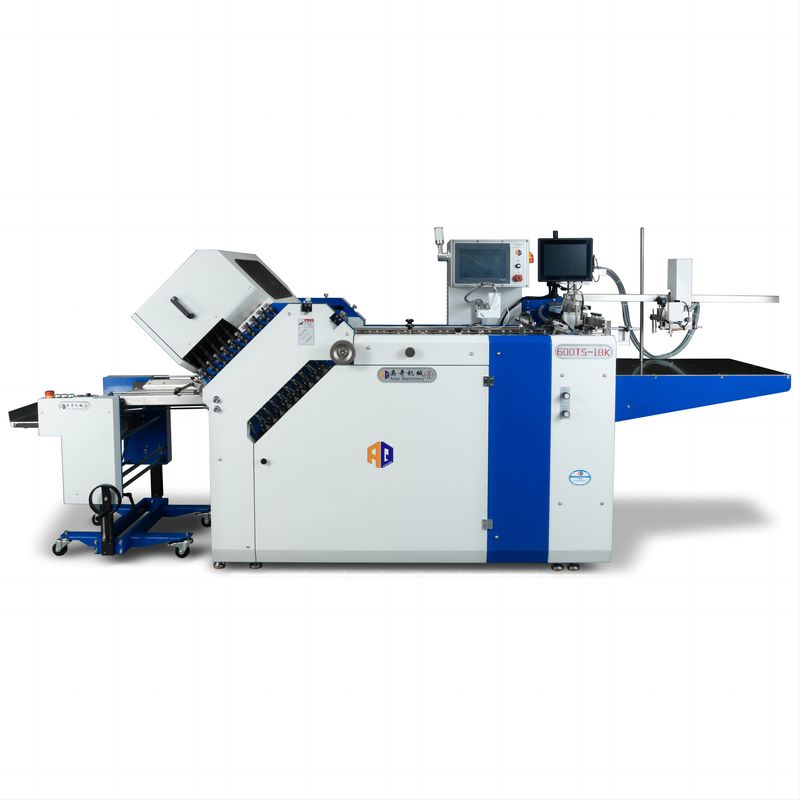

Automatic 600TS Jam Detection Outsert Pharmaceutical Leaflet Folding Machine
This Flat pile feeder folding outsert system is designed to handle light-weight pharmacetical and miniature leaflet folding . In order to meet different cutomers' needs , we have 480TS and 600TS for the first station . Different width format with 6-20 plates . The second station is to handle the thick and small-size leaflets with 4,6 or 8 buckle plates.
Station I :
600TS Paper Folder --- 600mm width format with 6-18 plates
Station II is to handle the thick and small-size leaflets with 4 ,6 or 8 plates.
Pressing unit:160YP
Max. infeed width : 160mm
Product Max. thickness : 10mm
Max. speed : 60m/min
voltage: 380V,075KW
Dimension(L*W*H) : 600*560*(1150-1250)mm
Weight : 185KG
Parallel knife:160PX
Max. infeed size:140*160(L*W)
Min. infeed size : 70*25(L*W)
Max. thickness : 12mm
Speed: 90m/min
Labeling machine:200TB
Labeling Process: Product entry -- Conveying ---Product inspection---Flip Product----Conveying ---Labeling
Parameters :
| Parameters of labeling machine |
| Label Accuracy |
±2mm(not including error of products and labels |
| Labeling Speed |
80-90pcs/min( related to the size of products and labels) |
| Label Length |
25-35 mm |
| Label width |
15-20 mm |
| Product Size |
L 50~200mm |
| W 30~45mm |
| H 2~10mm |
| Dimension(L*W*H) |
2600mm*750mm*1750mm |
| Voltage |
220V/50HZ |
| Net weight |
457.5kg |
| Label material |
Avery brand , model BW777 |
Vertical stacker-200LS
Max.delivery width:200mm
Min.delivery width:25mm
Min.finished product size:20*20mm
Max.delivery height:150mm
Min.delivery height:20mm
Power:220V,0.2KW
Machine net weight:100KG
Machine dimensions:130*75*94-123cm
