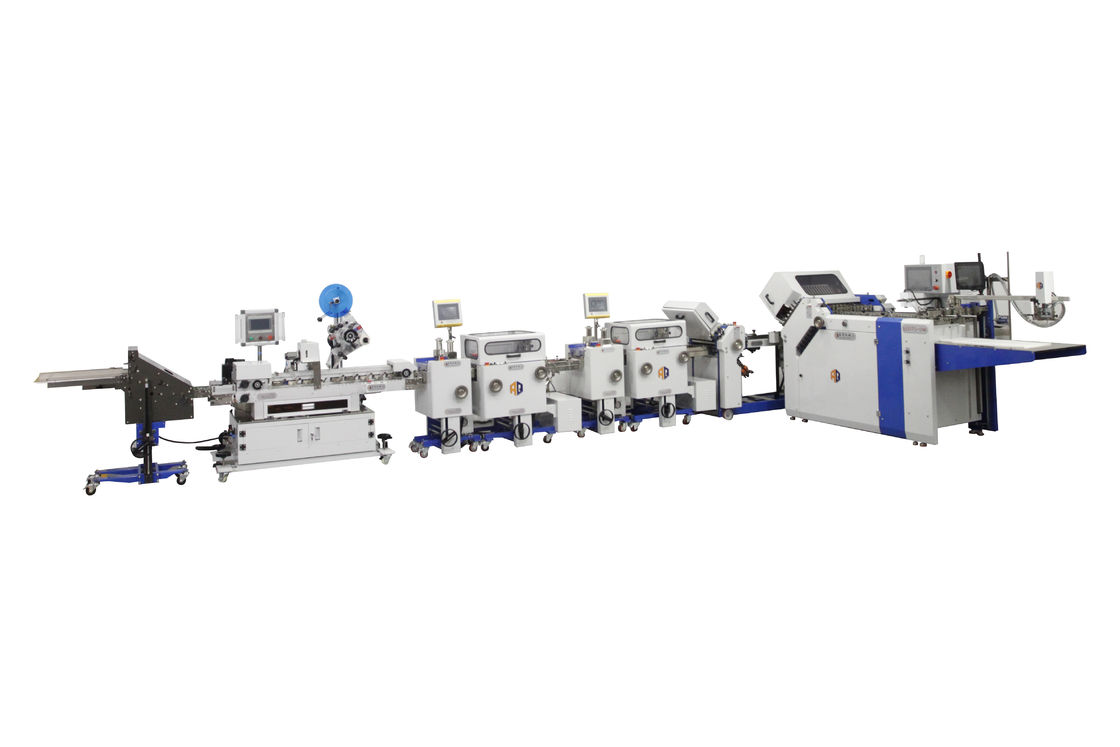

High Speed Pharmaceutical Leaflet Folding Machine 600mm With Labeling 600TS / 480TS

Safe and High-Speed Pharmaceutical Leaflet Folding Machine With Labeling

This Flat pile feeder folding outsert system is designed to handle light-weight pharmacetical and miniature leaflet folding . In order to meet different cutomers' needs , we have 480TS and 600TS for the first station . Different width format with 6-20 plates . The second station is to handle the thick and small-size leaflets with 4 or 6 buckle plates,also can be matched with pressing unit,parallel knife,labeling and vertical stacker, form a pharmaceutical outsert system .

Feature:

1. Belt driving is adopted to reduce the noise of the machine

2. Electrical system by PLC Schneider brand,more easy to operate

3. Equipped with ultrasonic double sheet detection; Paper ejection online; Jam detection

4. Equipped with sound insulation and delivery table

Station I : 600TS Paper Folder ---  600mm width format with 6-18 plates

                 480TS Paper Folder ---  480mm width format with 6- 20 plates

Station II: is to handle the thick and small-size leaflets with 4 or 6 plates.

Press unit

Max. infeed width : 160mm

Product Max. thickness : 10mm

Max. speed : 60m/min

voltage: 380V,075KW

Dimension(L*W*H) : 600*560*(1150-1250)mm

Weight : 185KG

Parallel knife

Max. infeed size:140*160(L*W)

Min. infeed size : 70*25(L*W)

Max. thickness : 12mm

Speed: 90m/min

Labeling Machine

Labeling Process: Product entry -- Conveying ---Product inspection---Flip Product----Conveying ---Labeling

Parameters

1,Label Accuracy:±1mm

2,Max.labeling speed:170pcs/min

3,Applicable product length:30-200mm

4,Applicable product width:45-220mm

5,Applicable product thickness:1mm-20mm

6,Label Length:20-40mm

7,Label Width:8-30mm

8,Dimensions(L*W*H):1800*600*1630mm

9,Voltage:220V/50HZ
