| Place of Origin: | Dongguan City,China |
| Brand Name: | AOQI |
| Certification: | CE certification |
| Model Number: | 200TB |
Max Width 20mm Label Sealing Machine With Speed Adjustment Controller
This labeling machine is specially designed with specificity and is specially used for flat labeling provided by customers.
Parameters
|
Label Accuracy |
±2mm(not including error of products and labels |
|
Labeling Speed |
80-90pcs/min( related to the size of products and labels) |
|
Label Length |
25-35 mm |
|
Label width |
15-20 mm |
|
Voltage |
220V/50HZ |
|
Net weight |
457.5kg |
|
Product Size |
L 50~200mm W 30~45mm H 2~10mm |
|
Dimensions |
2600mm*750mm*1750mm |
Feature
1. The labeling postion can be adjusted by handwheel

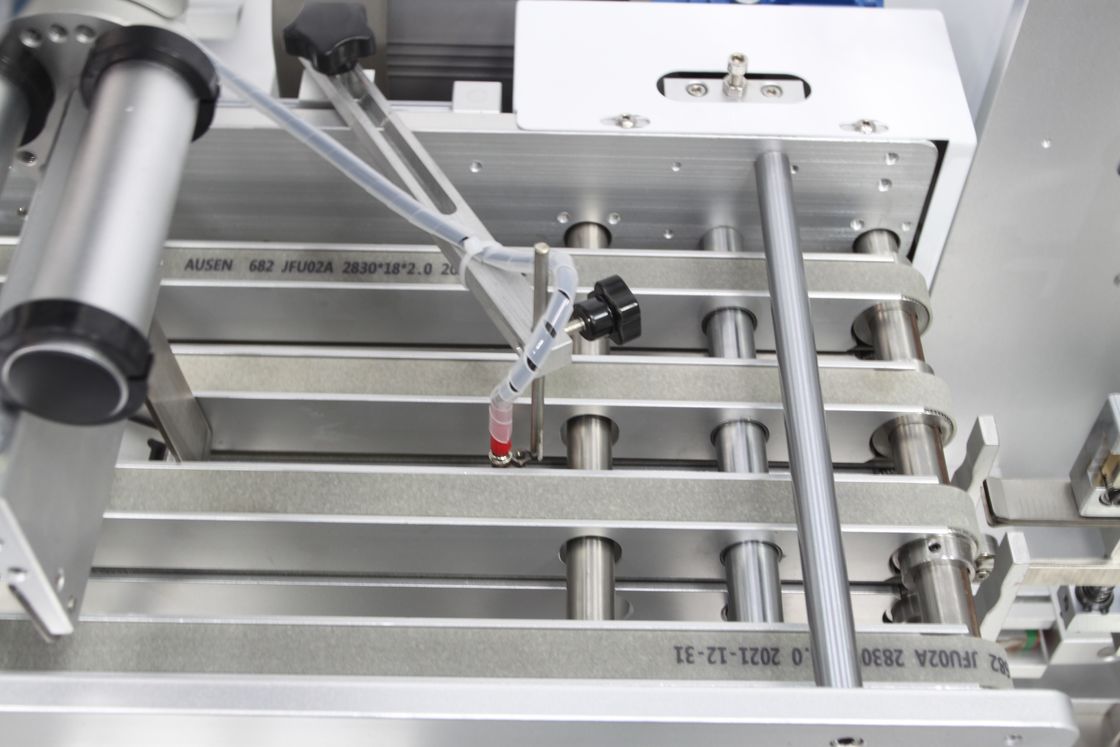

2. Clamping belt converying : conveying paper more stable
3. Laser eye helps to induct precisly
4. Use cam to clamp and push forward to realize 180° flipping
Labeling machine process: Product entry --- Conveying --- Product inspection --- Flip-Product --- Conveying --- Labeling
1. Driven by the conveyor belt, the product is automatically transferred to the left direction to the flip-mechanism position;
2. The product enters the position of the flipping mechanism and passes through the detection sensor; the PLC collects the detection signal and controls the flipping mechanism to flip;
3. After the flip is completed - enter the labeling station, the label is attached to the product, and the labeling roller presses the label tightly;
4. The product moves forward under the action of the conveyor belt;
