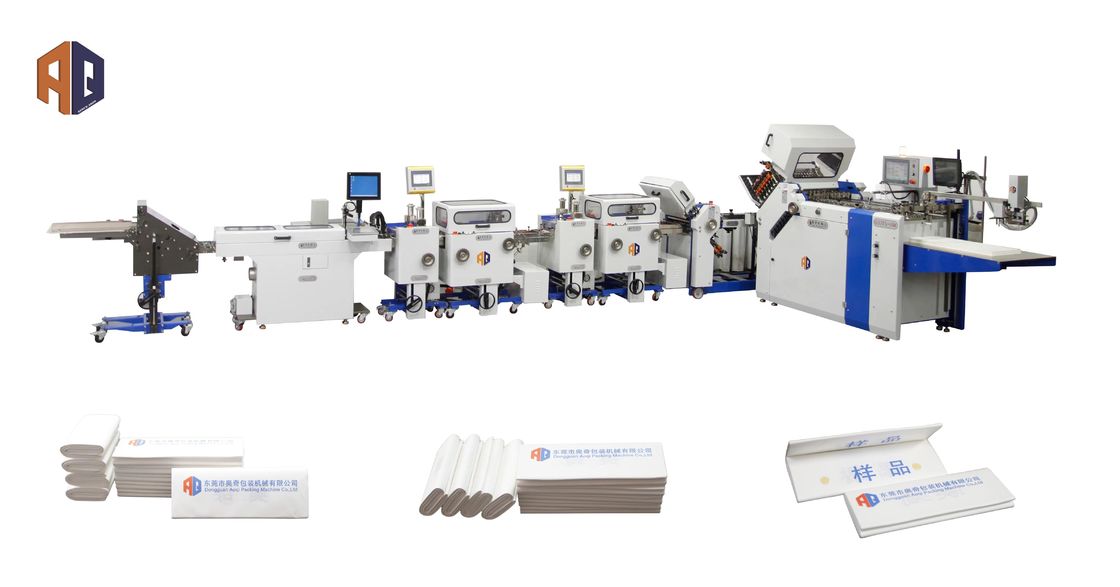

AOQi Pharmaceutical Leaflet outsert System Leaflet Folding Machine With Camera Inspection System
The 480/600TS pharmaceutical outsert system folding machine is a pile feeder machine for 480 or 600mm wide and 1000 mm long,specially for the difficult and complicated sheet folding.The machine is equipped with a double sheet detection,nois hood,online paper ejection ect..
Features
1. Adopt belt driving to reduce noise.
2. Sheet infeed and sheet alignment with suction wheel and ball rail .
3. Belt driving , slient and stable.
4. Equipped with sound insulation and delivery table.
5. Support perforating , scoring and cutting
6. Electrical system controlled by PLC Schneider brand .
7. Equipped with ultrasonic double sheet detection.
Station I : 600TS Paper Folder --- 600mm width format with 6-18 plates
480TS Paper Folder --- 480mm width format with 6- 20 plates
Station II: is to handle the thick and small-size leaflets with 4 or 6 plates.
|
Model
|
360T/480T
|
530TS
|
480TS/600TS
|
|
Min.sheet Size
|
50*105mm
|
70*120mm
|
100*160mm
|
|
Max.sheet Size
|
360*(750/1000)mm
480*(750/1000)mm
|
530*1000mm
|
|
|
Paper Thickness
|
40-250g
|
40-300g
|
40-300g
|
|
Folding Roller Fastest Speed
|
200/min
|
220/min
|
220/min
|
|
Folding Knife Max.frequency
|
500stroke/min
|
400stroke/min
|
400stroke/min
|
|
Input Power
|
380v
|
380v
|
380v
|
|
Power Consumption
|
2.0-3.75kw
|
3.1-3.75kw
|
3.9-4.75kw
|
|
Net Weight
|
500-1500kg
|
800-1500kg
|
800-1500kg
|
Press unit
Max. infeed width : 160mm
Product Max. thickness : 10mm
Max. speed : 60m/min
voltage: 380V,075KW
Dimension(L*W*H) : 600*560*(1150-1250)mm
Weight : 185KG
Parallel knife
Max. infeed size:140*160(L*W)
Min. infeed size : 70*25(L*W)
Max. thickness : 12mm
Speed: 90m/min
Hot melt gluing machine
Max. infeed size:250mm
Min. infeed size : 20mm
Max. speed : 120m/min
Voltage:220V
Machine weight:76.5kg
Machine dimensions:1000*370*1250mm
Vertical Stacker
Max.delivery width:200mm
Min.delivery width:25mm
Min.finished product size:20*20mm
Max.delivery height:150mm
Min.delivery height:20mm
Power:220V,0.2KW
